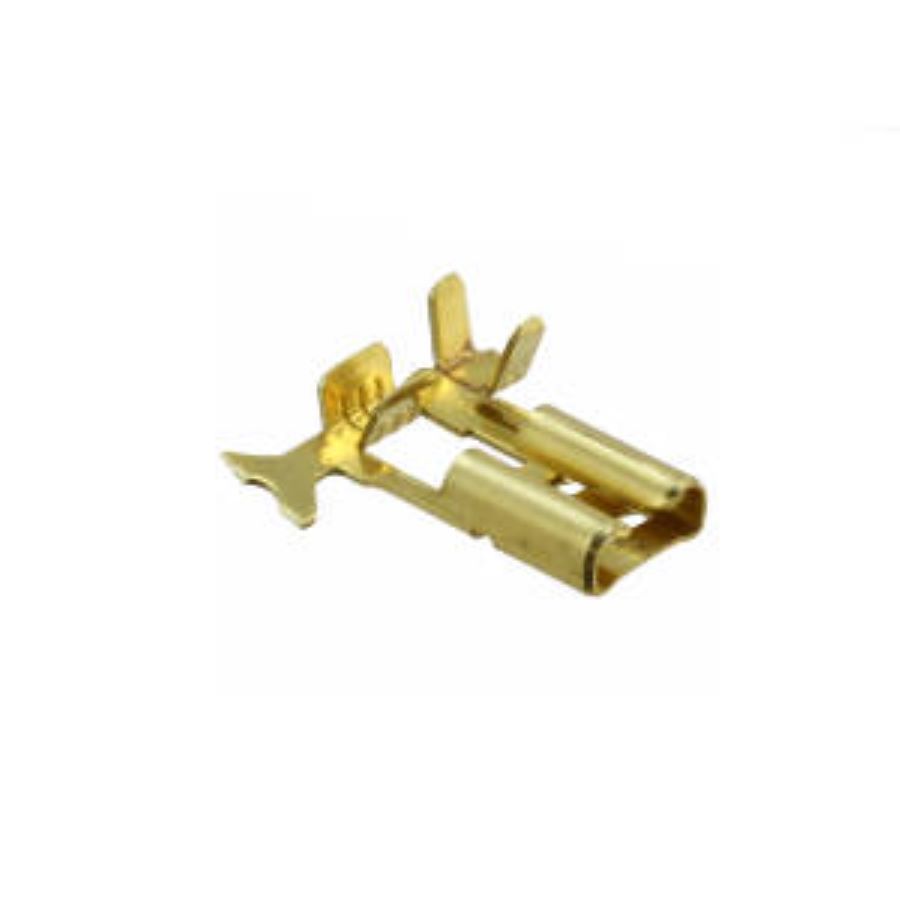

1742087-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1742087-1
Datasheet:
Description:
Terminals Free Hanging 18 AWG Female
| Parameter | Value |
|---|---|
| Length | 11.3 mm |
| Width | 5.61 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Unplated |
| Contact Material(Contact Finish) | Brass |
| Type | Flag Tab |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 4.7498 mm |
| Wire/Cable Diameter | 2.8 mm |
| Wire/Cable Gauge | 18 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Plating | Unplated |
| Termination Style | Crimp |
| Insulation Diameter | 2.8 mm |
| Insulated Wire Support | Yes |
| Mating Tab Width | 4.75 mm |
| Tab Length | 4.75 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 4.75 mm x 0.81 mm |
Stock: 18540
Distributors
pcbx
pcbxUnit Price$0.62876
Ext.Price$0.62876
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.62876 | $0.62876 |
| 10 | $0.31438 | $3.14380 |
| 50 | $0.24183 | $12.09150 |
| 100 | $0.18602 | $18.60200 |
| 500 | $0.14309 | $71.54500 |
| 1000 | $0.11007 | $110.07000 |
| 3000 | $0.08467 | $254.01000 |
| 5000 | $0.06513 | $325.65000 |
| 10000 | $0.05010 | $501.00000 |
| 30000 | $0.04634 | $1390.20000 |
| 50000 | $0.04506 | $2253.00000 |
